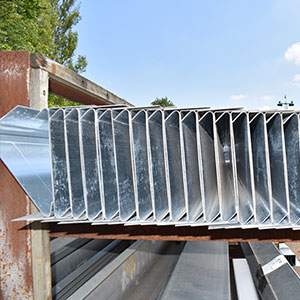

METAL EDGE TRIM TO FORM THE EDGE OF A CONCRETE SLAB
Designed as an external and internal perimeter shuttering detail for steel frame structures.

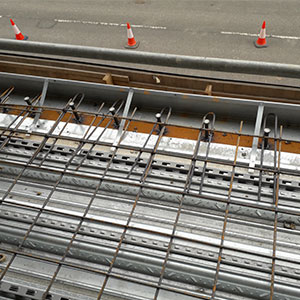

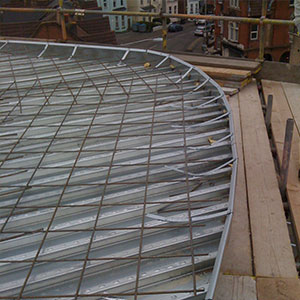

Edge Trims can be supplied in a variety of heights and gauges to suit the proposed details. Trims are fixed to the frame prior to the installation of the precast units with additional lateral restraints installed to the planks before the concrete topping is applied.
Available Gauges
- 1.0mm
- 1.2mm
- 1.6mm
- 2.0mm
Specification:
- Standard 3000mm lengths, others available on request
- Available in depth with multiples of 25mm
- Tethering holes at 750mm spacings
- Trim09 with Trim01 can be used to create a removable toe-board solution
- Trim12 to be used where VoidSafe™ is required
Steel Grade:
- DX 51D
Available Finishes:
- Galvanised (Z275)
- HD (ZM310)
- Stainless Steel (SS)
